Hazardous locations, of Zones 2 (gas atmosphere) and 22 (dust atmosphere), production halls and warehouses, in industrial sectors, workshops and chemical factories etc.

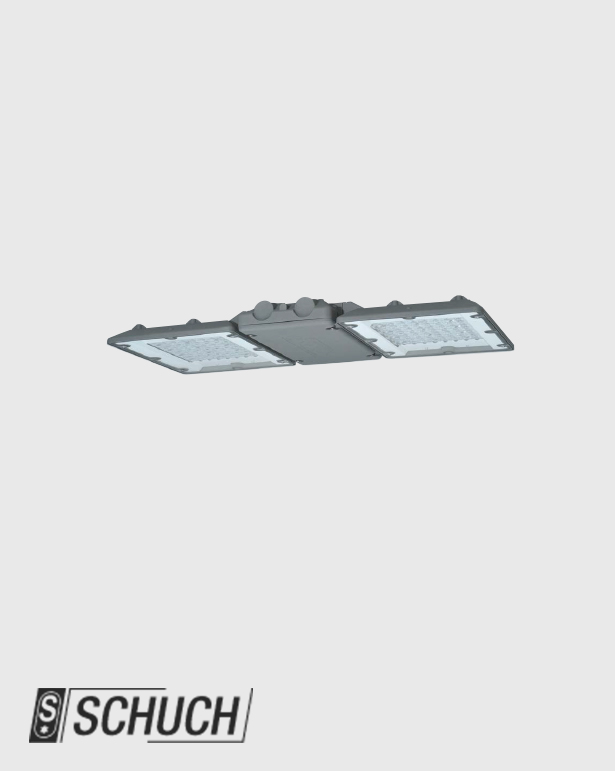

Two versions are available: 1 or 2 LED wings for substitution of 250W / 400W high pressure discharge lamps
Housing: Diecast aluminum, DB 702N (mica-iron paint). LED-housing with LED modules, optics behind tempered safety glass (IK08). ECG housing with integrated electronic control gear, prewired on terminals.
Optics: Narrow-wide respectively wide beam without lenses.
Connection: 3 poles up to 2,5. Entries: 1 gland M25×1,5.
Mounting material: See accessories/spare parts.
General Purpose: Beaming downwards (0°).
More information please refer to below catalog:
