Applications:

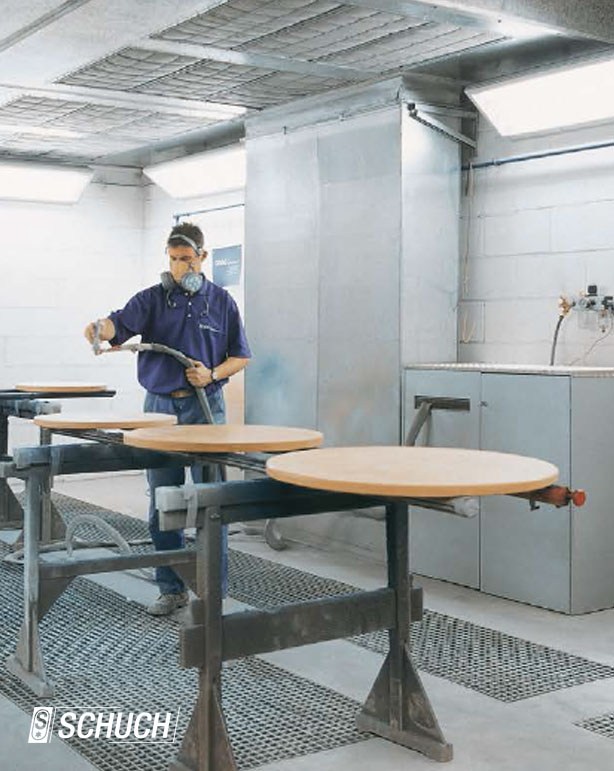

Hazardous areas of Zones 2 (gas) and 22 (dust), e.g. cleanrooms, paint shops and spray booths.

Design:

Housing: Sheet steel, powder coated in light grey (RAL 7035), silicone foam gasket. Glass cover: Impact resistant safety glass pane, frameless / hinged.

Central locking system: Operated by

a 5 mm allen key, internal hinges on the opposite side.

Reflector: Hinged; white painted sheet steel; detachable, carrying LED-modules and glare limitation modules. Connection: 3 poles up to 2.5 mm². Cable entries: 3 entries M25 x 1.5,

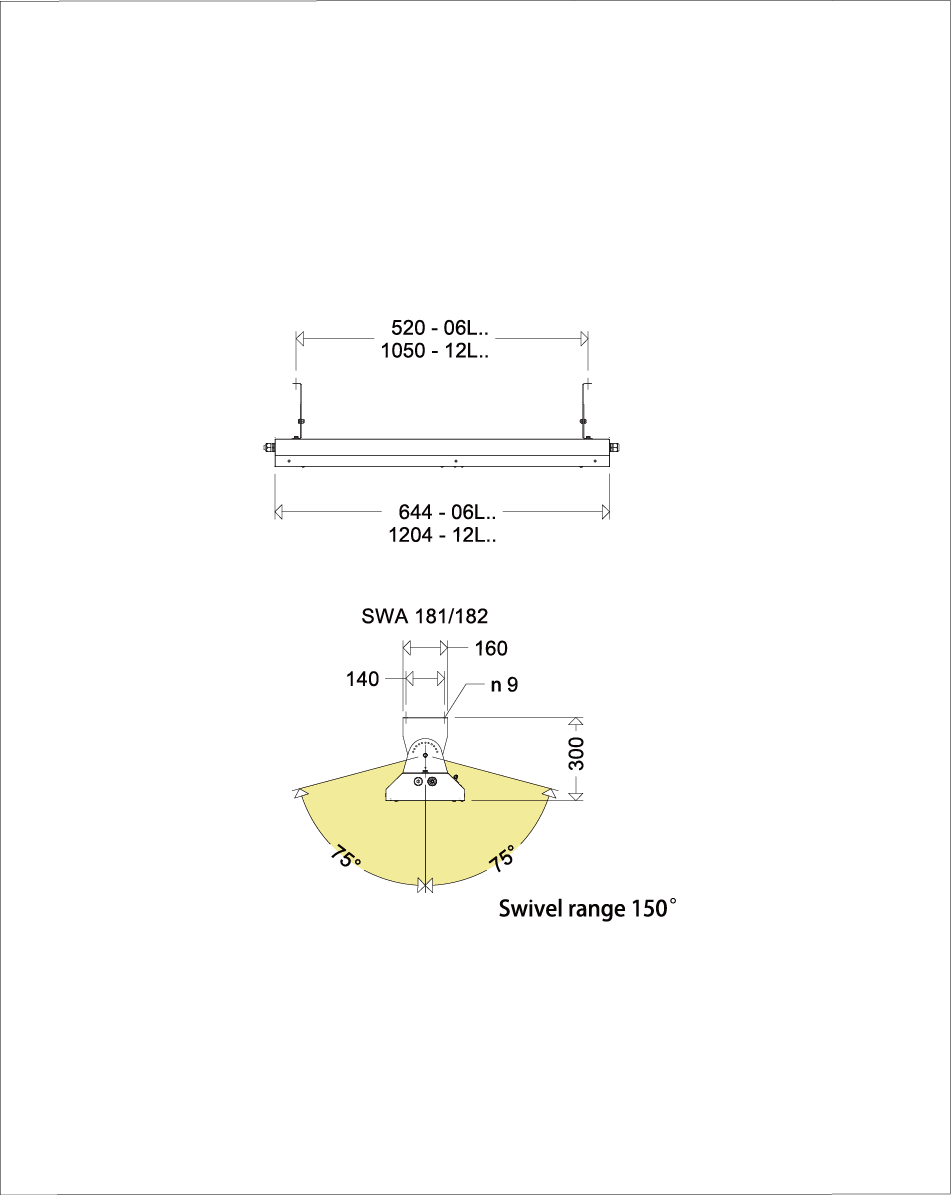

(2 glands - one of them is plugged) Standard: Facing downwards or forwards. Mechanical installation:

Mounting accessories see spare parts/ accessories.

Please download the catalogue to get more information.  → nD822 (new).pdf
