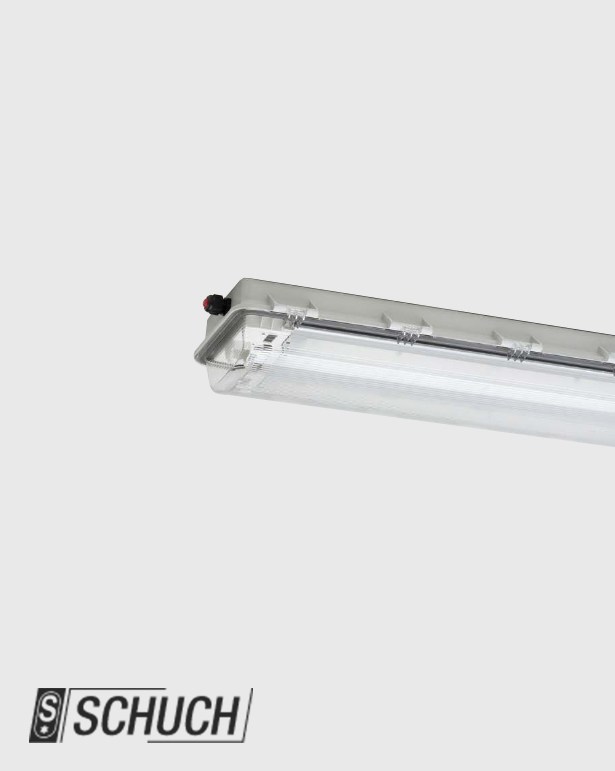

e840

Hazardous locations of zones 1 (gas) and 21 (dust) as standard illumination or as emergency illumination in combination with external power supply units.


Housing: Glass fibre reinforced polyester resin.

Cover: Clear polycarbonate with internal prisms, hinged, silicone gasket.

Central locking system: Operated by a hexagonal socket wrench 13mm.

Reflector: Aluminium, carrying the encapsulated LED-modules with frosted covers for glare limitation, hingeable and removable.

Connection: 3 poles up to 4 mm².

Cable entries: 3 entries M25×1,5, (2 glands - one of them is plugged).

Standard: Facing downwards or forwards.

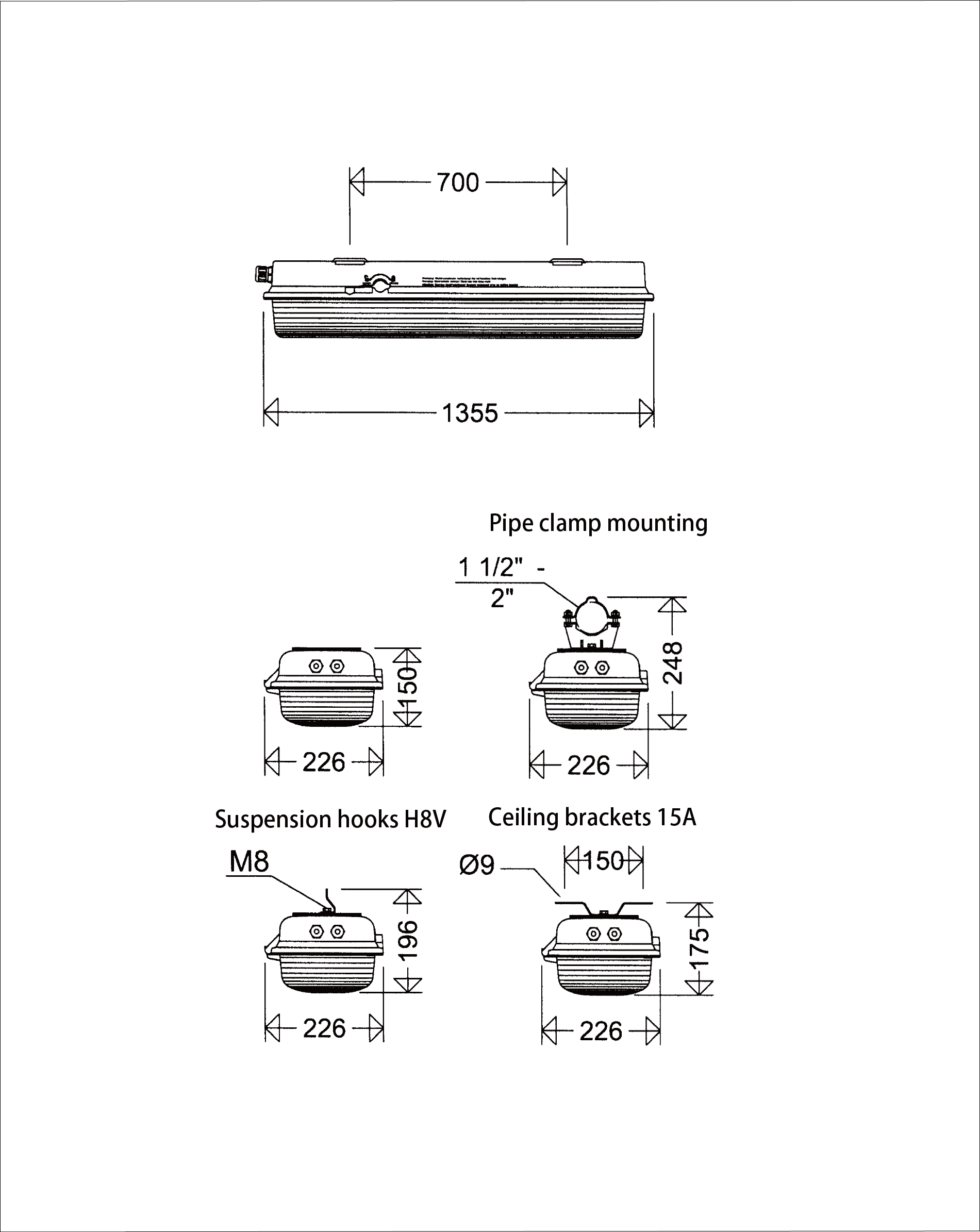

Mechanical installation:

Mounting accessories see spare parts/accessories.


More information please refer to below catalog:

SCHUCH LED-Light Fitting for Ex-Zone 1&21Series e840... .pdf
