Applications:

Hazardous locations of zones 2 (gas) and 22 (dust).

Design:

Housing: Glass fibre reinforced polyester resin.

Cover: Injected polycarbonate, frosted (F), silicone gasket.

Closure: Stainless steel clips (KE), two of them as safety clip (KES), to be opened with screwdriver only.

Reflector: Sheet Steel, painted, carrying the LED-modules and all electrical components, clipped into the cover, suspendable.

Connection: 3 poles up to 2.5 mm². Cable entries: 3 entries M25 x 1.5,(2 glands - one of them is plugged) Standard: Facing downwards or forwards.

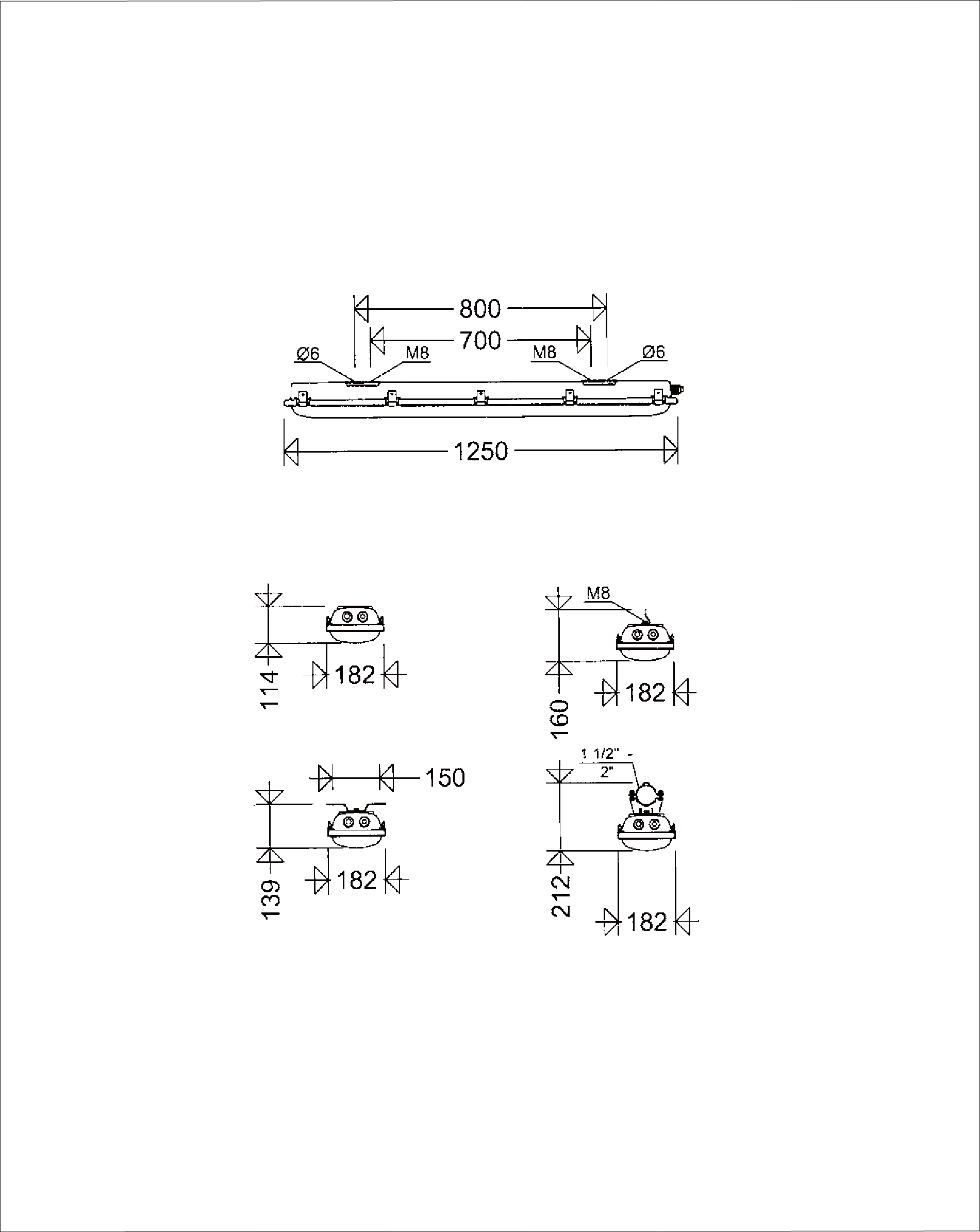

Mechanical installation: Direct ceiling mounting is possible. Rub-ber washers are included.

Further mounting options see accessories / spare parts.

Please download the catalogue to get more information.  → nD866.pdf
