Product datasheet
Rome 150Q RQ09 27-1
Application:

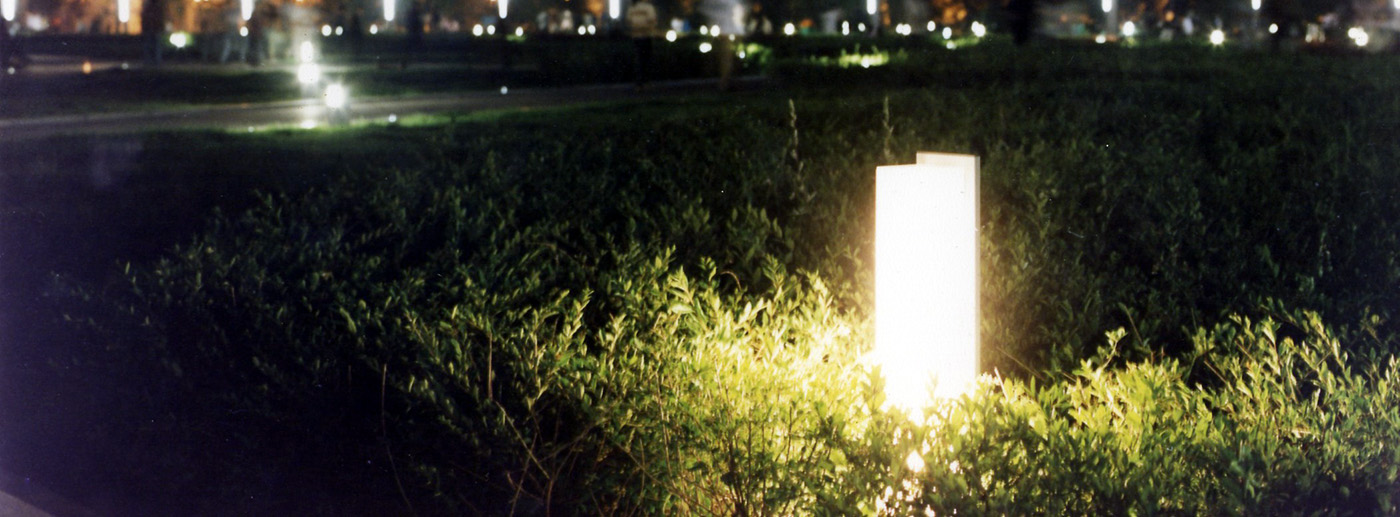

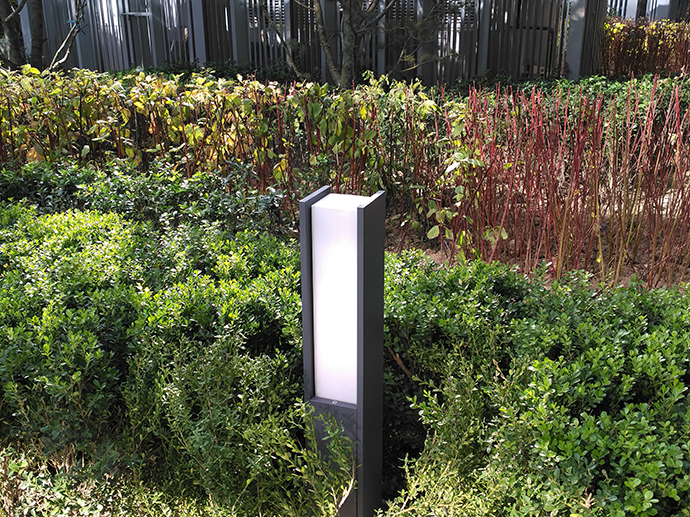

High quality bollard luminaire. It is suitable for park, plaza, commercial street and residential area, etc.;
Description:
3 mm thickness aluminum body, Painting color DB703 (Grey sand streak), using AkzoNobel / PPG brand, the coating thickness is 85 μm;
Translucent PMMA diffuser enclosure with one-time molding process. High impact-resistant performance. Maintains constant shape and color for a long time;
Silicone sealing ring;
Comply with EN60598 and GB7000 standards;
Technical Parameter1:
Working voltage: 220 V, 50/60 Hz;
CRI: ≥80;
Lifetime: 50000h@L70;
Anti-electric shock grade: Class I;
Protection grade: IP 65;
Weight: 6 Kg;
Windward area: 0.15 m²;
Impact resistance grade: IK08;
Working temperature: -25℃ - +50℃
Photometric data
Polar diagram
Illuminance distribution
Optical system：undefined
CCT：undefined
Wattage: undefined
Lumen： undefined
CCT：undefined
Wattage: undefined
Lumen： undefined
Technical Parameter2:
1×E27 socket for LED lamps;
Control:
ON/OFF switch control;
Package information:
Shock proof EPE cotton inner packing, standard carton outer packing;
Attachments:
Unique key for pole;
Installation and Mounting:

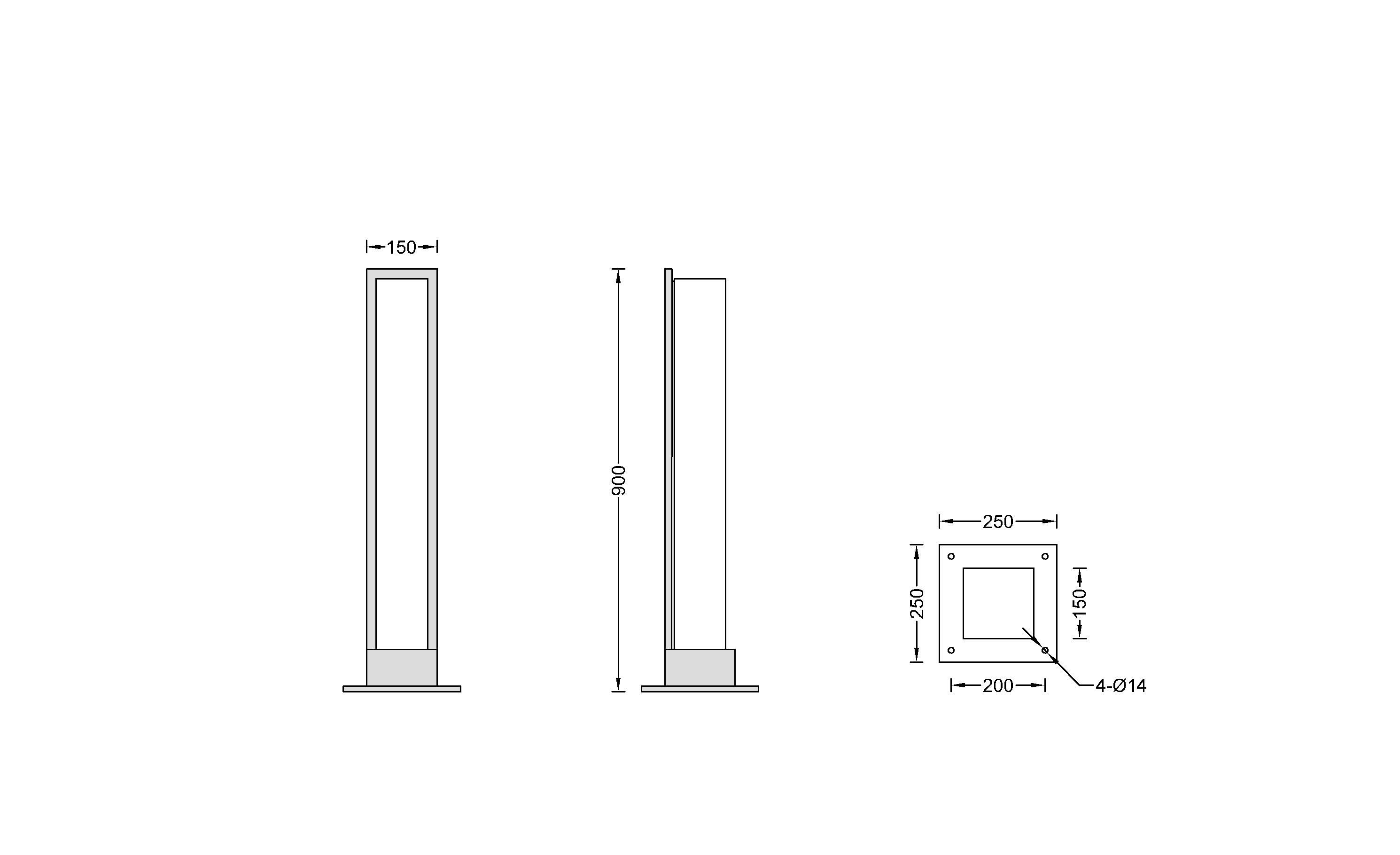

Flange size: 250×250×16 mm;
Reserve YZW 3*1.0 m² cable from fixtures to pole access door;
The pole is made of aluminum tube;
3 mm thickness;
Surface electrostatic polyester spray, AkzoNobel / PPG brand, coating thickness 85 μm;
The right is reserved to change specifications without prior notification or public announcement.
